Product Description
2013 model Used Mobile Crane XCMG QY70K-1
Production Details
2018model XCMG XCT80 Used Mobile Crane, Maximum rated lifting capacity 80 tons, main boom length 47.5 m, jib length 17 m, two hooks(80T,8T)
Product Advantage
XCMG XCT80L5 crane has the following significant advantages:
1. Powerful lifting performance
- High load capacity: the maximum rated lifting capacity is 80 tonnes, and the maximum lifting height is up to 75.5m (main boom + jib), which can meet the needs of bridge construction, plant equipment installation and other complex working conditions.
- Industry-leading boom length: the main boom has a full extension length of 50.5 metres and comes standard with a 17.5-metre fixed jib, giving it a wide operating range and leading lifting performance in its class.
2.Efficient power and hydraulic system
- Low-speed and high-torque power: the MC11.40 engine of German MAN technology platform is adopted, with rated power of 297kW, maximum torque of 1900Nm, maximum climbing capacity of 47%, and maximum travelling speed of 90km/h. The new energy-saving hydraulic system: high efficiency and high torque.
- New energy-saving hydraulic system: high efficiency, durability, better micro-movement, lifting speed up to 2.5m/min, slewing speed of 0.1°/s, to ensure precise operation.
3.Excellent chassis design
- G-class off-road chassis: the only product of the same tonnage in the industry that adopts G-class off-road chassis, with the front footplate 450mm off the ground, which makes it more passable.
- High-carrying axle with large speed ratio: equipped with 10-speed gearbox with synchroniser, taking into account the performance of low-speed climbing and high-speed transfer.
4.Advanced operation and safety system
- Automatic working condition planning technology: the system can automatically recommend the optimal working condition according to the input parameters of height, weight and amplitude.
- Omni-directional braking system: Adopting the principle of G-generation braking system, the front axle is equipped with 25-inch disc brake, which is good at resisting heat recession and sensitive in braking response.
- Safety protection design: Equipped with all-round non-slip walking board, high light LED outrigger lighting, large field of view winch monitoring mirror and so on.
5.Humanised design
- Comfortable cab: the main driver's air suspension seat and the passenger's double seat can be unfolded into a simple sleeper, equipped with cold and warm air-conditioning, which makes the driving experience more comfortable.
- Convenient operation: wireless remote control of counterweight and convenient rope threading system of hook make the operation more convenient.
6. High cost performance and reliability
- High operating efficiency: optimised structural design and efficient hydraulic system make it more than 10% ahead in high-frequency working conditions such as bridge construction above 30m.
- Strong durability: Made of high-strength steel, covered walk-behind plate and aluminium alloy profile, it has good anti-slip effect and long service life.
With its powerful lifting performance, efficient power system and user-friendly design, XCMG XCT80L5 crane has become a ‘rich weapon’ among 80-tonne cranes, which is widely used in all kinds of large-scale lifting operations.

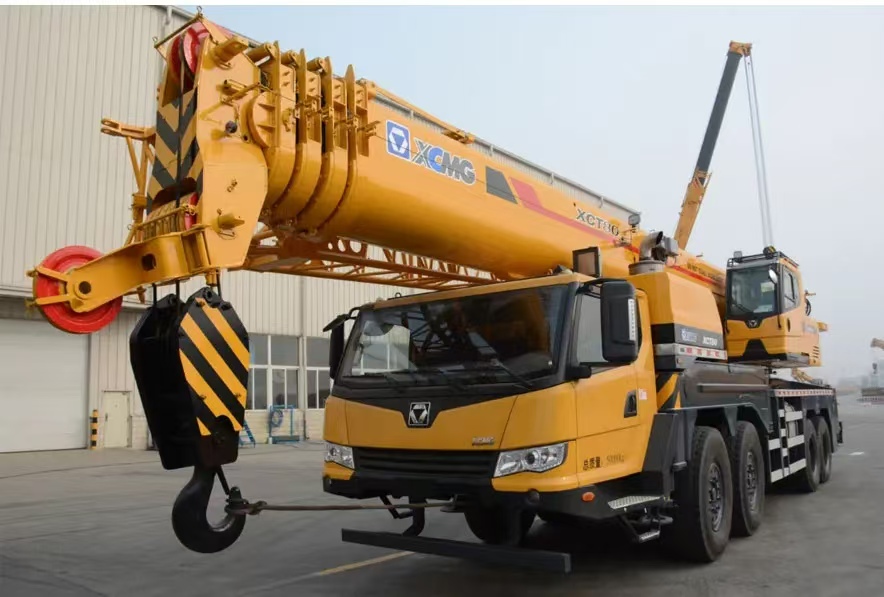

Pictures show:
